| Material: | 6063T5 | Color: | Black Powder Coating |
|---|---|---|---|
| Surface treatment:: | Mill Finish | CNC Machining or not: | CNC Machining |
| Type: | Broaching, Drilling, Etching / Cutting, Welding | Deep process: | CNC,milling,punching,drilling,etc |
| Keyword: | Roof Rack | ||
| Điểm nổi bật: | aluminium extruded profiles,extruded profiles aluminium |
||

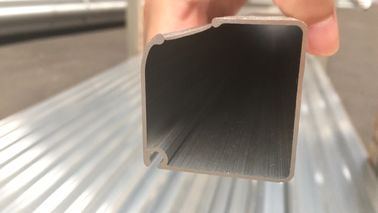

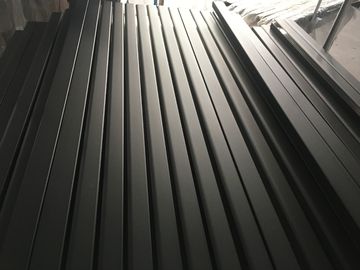

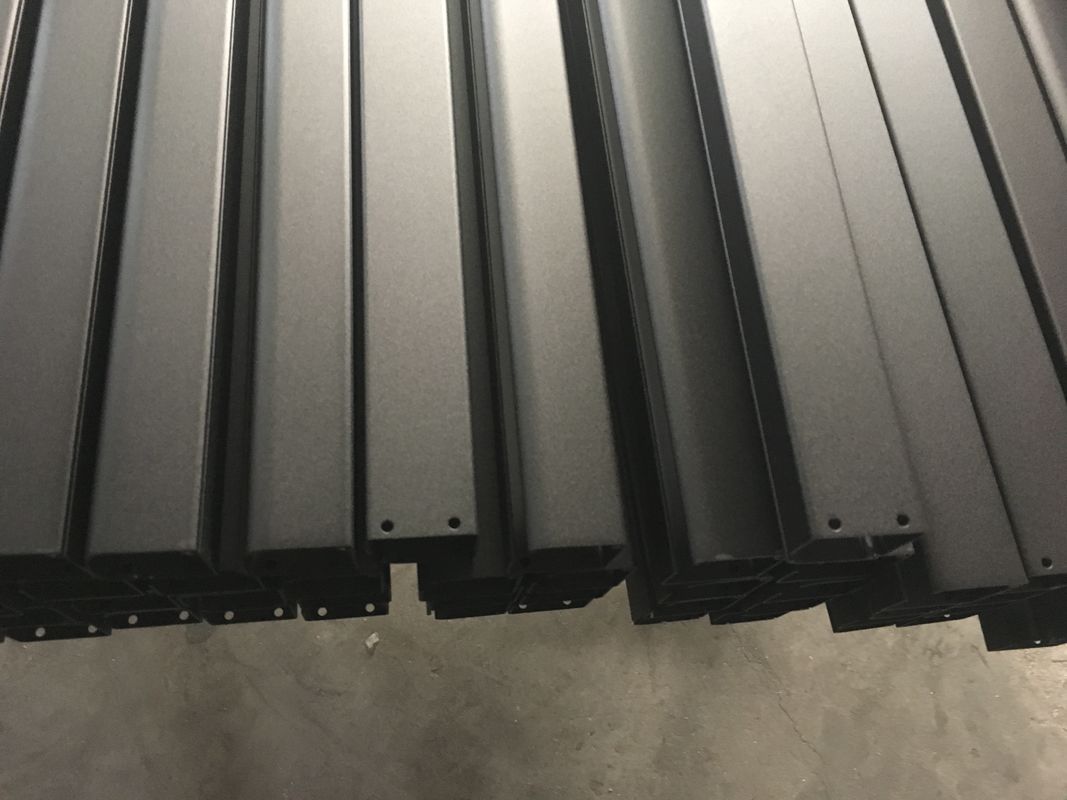

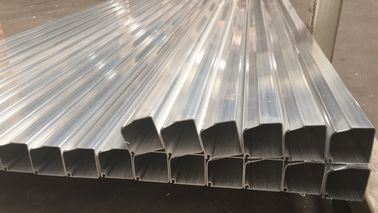

Black Anodized Powder Coating Aluminum Extrusion Profiles for Roof Rack
Aluminium Alloy Composition:
| Chemical Composition | 6063 T5 | ||||||||
| Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Others | total others |
| 0.2-0.6 | M.0.35 | M. 0.1 | M. 0.1 | 0.45-0.9 | M. 0.1 | M. 0.1 | M. 0.1 | M. 0.05 | 0.15 |
| Mechanical property | |||||||||
| Yield Strength | Tensile Strength | Extensibility | hardness | ||||||
| 110Mpa | 160Mpa | 8% | 8 HW | ||||||
| Chemical Composition | 6063 T6 | ||||||||
| Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Others | total others |
| 0.2-0.6 | M.0.35 | M. 0.1 | M. 0.1 | 0.45-0.9 | M. 0.1 | M. 0.1 | M. 0.1 | M. 0.05 | 0.15 |
| Mechanical property | |||||||||
| Yield Strength | Tensile Strength | Extensibility | hardness | ||||||
| 180Mpa | 205Mpa | 8% | |||||||
Aluminium Profile Machining:
CNC (Computer Numerical Control) Punching/Drill/Tapping/Milling/Assembly
Accurate Cutting for 90° & 45° & all degree
Promise cutting tolerance : p/m 0.1mm
Aluminium profile surface treatment:
Short anodized for all colors Polishing bright anodized/Matt bright anodized
Brush anodized Electrophoresis
Anodized/Sandbalsting/Matte/Powder coated/Wooden print/Thermal break
Extrusion Anodized/Electrophoresis
Powder coated Wooden print
Machining
EP paper inside for each piece then shrink paper. or carton paper then pallet. or wooden carton. ect as customs' requirement
