6060,6063A,6101,6063, 3003 Aluminium alloy cold draw extruded round aluminium tube / pipe

Hình ảnh lớn : 6060,6063A,6101,6063, 3003 Aluminium alloy cold draw extruded round aluminium tube / pipe

Thông tin chi tiết sản phẩm:

Place of Origin:	Jiangyin China
Hàng hiệu:	Xinyu
Chứng nhận:	ISO9001, SGS, Rosh
Model Number:	XY-0323

Thanh toán:

Minimum Order Quantity:	500kg
Giá bán:	USD 2000-4500 PER TON
Packaging Details:	As customer's requirement
Delivery Time:	15 days
Payment Terms:	L/C, D/A, D/P, D/P, T/T, Western Union
Supply Ability:	3000 ton per month

Tiếp xúc

Chi tiết sản phẩm

Grade:	6000,3000 Series	Surface Treatment:	Polished
HS Code:	7608201090	Color:	Cream White, Anodized, Natural
Thickness:	0.8mm-40mm	Outer Diameter:	6mm-500mm
Điểm nổi bật:	round aluminum tube , aluminum round pipe

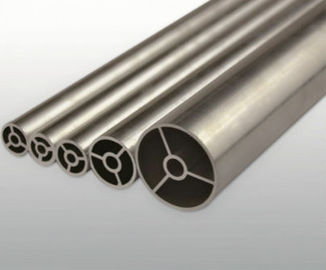

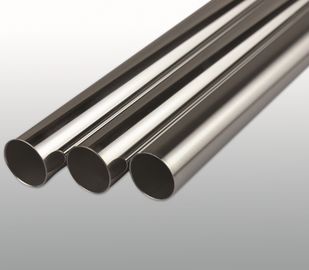

6060,6063A,6101,6063, 3003 aluminium alloy cold draw extruded round tube / pipe

Product Description

we are specialized in making hign precision aluminun products, such as aluminumtube,aluminum profile and aluminum stick.

1,Specification: See the Excel table

2,Material: A6063 ,A3003, and other series alloy as per customer's components.
3,suface treatment: Anodizing ,turning ,power coating,mill finish, etc

4,Design: As customer's drawing or sample or our own products.

5,Packing:Standard exporing package ,or as customer'request.

6,Equipment: CNC ,extruding machine,cold drawn machine,heating oven,straigtening machine,cutting machine,ageing machine.
7,Manufacturing process:

8,Color: Anodized ,natural,clear,ice cream,and request other color.

9,hardness: As per customer's actual request.

10,usage: this product is called theree vector tube ,part of laserprinter . it also has other usage.

we can produce material ranged 1000 series , 2000 series ,3000 series ,6000 series ,as per customer's reqirement.
if you want to know more detail , you could contact with us .

OD	OD Tolerance	ID Tolerance	OD Roundness	straightness	Thickness Tolerance	Circular run-out
φ12.0--	±0.05	±0.02	0.01↓	0.015↓	0.04↓	0.05↓
φ20.2	±0.08	±0.02	0.01↓	0.025↓	0.04↓	0.07↓
φ20.14--	±0.05	±0.02	0.02↓	0.015↓	0.05↓	0.08↓
φ30.3	±0.05	±0.02	0.02↓	0.020↓	0.05↓	0.10↓
φ47.55--	±0.08	±0.04	0.04↓	0.030↓	0.07↓	0.15↓
60.55	±0.08	±0.04	0.04↓	0.050↓	0.07↓	0.20↓

Chemical composition

Grade	Marginal value (%)											Other		AL
Grade	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Zr	single	Total	AL
1050	0.25	0.4	0.05	0.05	0.05	—	—	0.05	0.05V	0.03	—	0.03	—	99.5
1060	0.25	0.35	0.05	0.03	0.03	—	—	0.05	0.05V	0.03	—	0.03	—	99.6
2014	0.50 -1.2	0.7	3.9 -5.0	0.40 -1.2	0.20-0.8	0.1	—	0.25	—	0.15	—	0.05	0.15	>98
2024	0.5	0.5	3.8 -4.9	0.30 -0.9	1.20-1.8	0.1	—	0.25	—	0.15	—	0.05	0.15	>98
3003	0.6	0.7	0.05 -0.20	1.0 -1.5	—	—	—	0.1	—	—	—	0.05	0.15	>98
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15 -0.35	—	0.1	—	—	—	0.05	0.15	>98
6061	0.40 -0.8	0.7	0.15 -0.40	0.15	0.8-1.2	0.04 -0.35	—	0.25	—	0.15	—	0.05	0.15	>98
7075	0.4	0.5	1.2 -2.0	0.3	2.1-2.9	0.18 -0.28	—	5.1~6.1	—	0.2	—	0.05	0.15	>98

FAQ

Q. Are you a factory or trading company?

We are a factory company.

Q. How to ensure the quality of your products?
ISO9000, client reqirements, product standards,strict inspection to control raw material,production process and final products

Q. How do you resolve the problem about your products?
Person of aging services: For customer complaints commissioner set up a special complaint handling,complaint issues recorded the first time and find the relevant person in charge of the feedback and resolve. Details check our "Quality corrective action report"

Q. What is the MOQ?
A. Sample order is acceptable, And some samples can be free.

Q. How long do you need the delivery time?
1)Supply within 5-10days (product in our stock list)
2)Custom products need to be calculated according to the quantity

Q.What 's your payment terms?
T/T , L/C at sight , Western Union

Q.How can we get your price ?
We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
